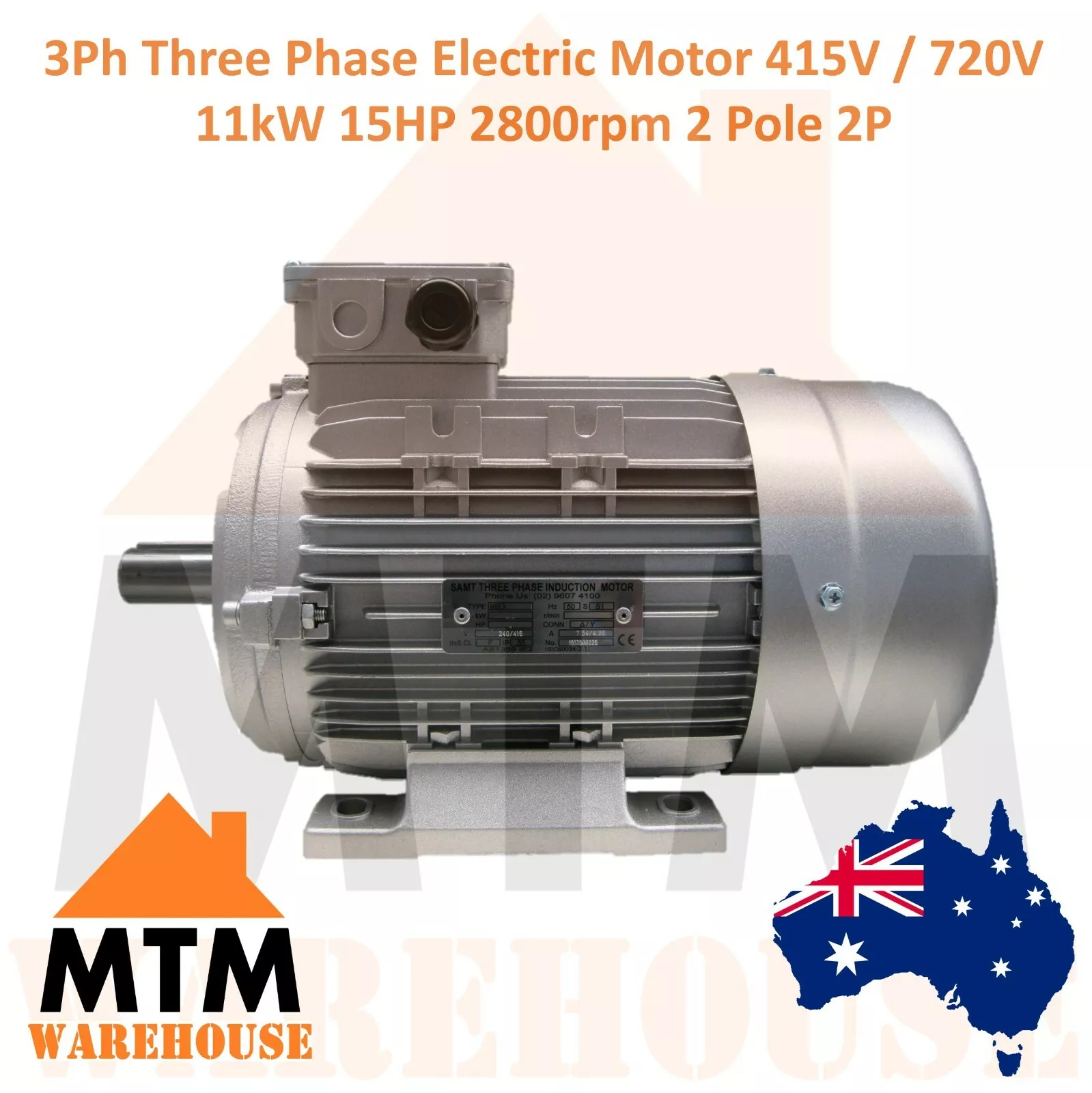

3Ph Three Phase Electric Motor 415V / 720V 11kW 15HP 2800rpm 2 Pole 2P IE3

3Ph Three Phase Electric Motor 415V / 720V 11kW 15HP 2800rpm 2 Pole 2P

3Ph Three Phase Electric Motor 415V / 720V 11kW 15HP 2800rpm 2 Pole 2P

SAA Approved

Specifications:

• Power: 11Kw (15HP)
• Voltage: 415V / 720V Three Phase 50Hz
• Speed: 2 Pole (2800rpm)
• Shaft size: 42mm

• IEC Standard
• Customised Silver Paint
• IP55 Protection Rating
• Epoxy Painted
• Cast aluminium construction with top mounted terminal box
• Class F insulation
• IE3 High Efficiency
• Totally Enclosed Fan Cooled
• High quality bearings, grease packed for life
• Low noise and vibration

Suitable Applications:

• Hoists / Winches
• Compressors
• Conveyor Drives
• Pump Drives
• Automation Devices
• Food / Pharmacy Packaging
• Pulley drives
• Fans
• Food Processing

Optional Accessories (Available on request):

• IEC Flange/Foot Mounting
• Slide Rails
• Industrial Gearboxes
• Couplings
• Pulleys
• Chain Drives

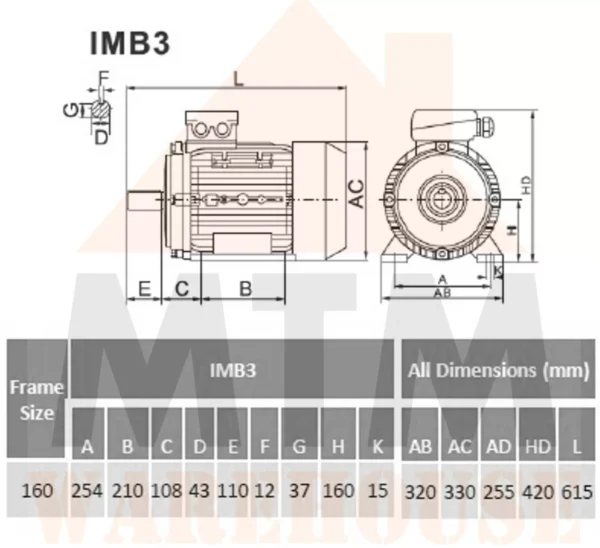

Dimensions:

(This listing is for IMB3 motor, we can provide IMB14 and IMB5 for extra charge)
