Dispatch in 24 hours Pick-Up Available Return:30-day buyer pays return postage
$455.00

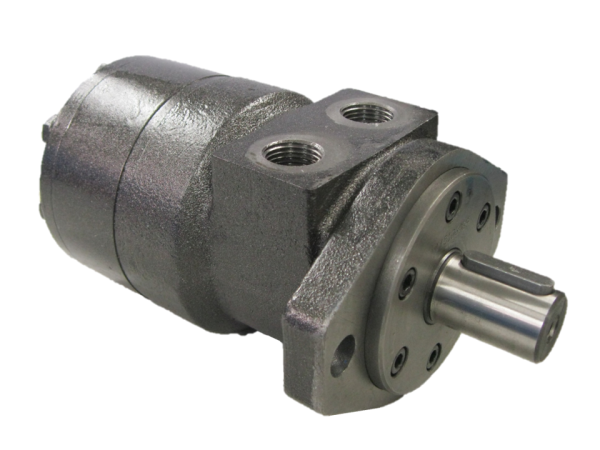

Orbital Hydraulic Motor SDH60 Interchangeable with Parker TB
Specifications:
- CC/Rev: 59.5
- Rotor Width L1 (mm): 8.25
- Speed Max Cont (RPM): 983
- Flow Max Cont (LPM): 50
- Pressure Drop Max Cont (Bar): 125
- Inlet Pressure Max Cont (Bar): 140
- Torque Max Cont (Nm): 89
- Weight (kg): 5.7
- Case: 7/16″ UNF
Shaft Sizes avaliable:
- 1″ Straight Woodruff Keyed (Standard)
- 1″ SAE 6B splined
- 7/8″ 13Y Splined
- 1″ Straight Cross Hole (8mm hole)
- 1″ 1:8 Tapered
