Dispatch in 24 hours Pick-Up Available Return:30-day buyer pays return postage
$505.00

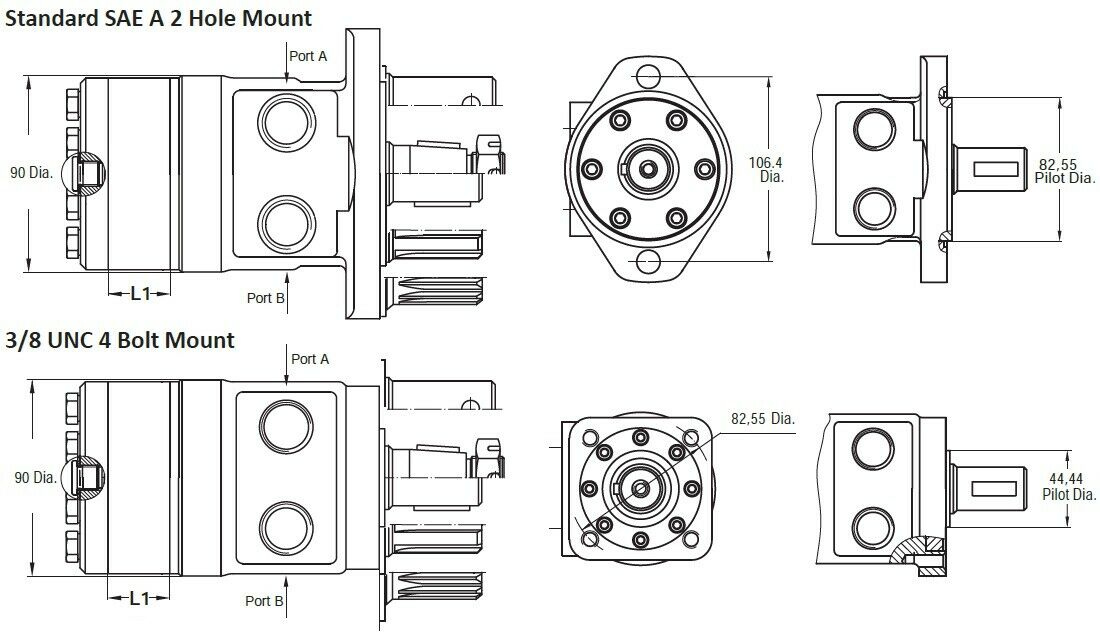

Orbital Hydraulic Motor SDH250 Interchangeable with Ross TRW MG, White Cross RS
Specifications:
- CC/Rev: 247.5
- Rotor Width L1 (mm): 33.33
- Speed Max Cont (RPM): 242
- Flow Max Cont (LPM): 60
- Pressure Drop Max Cont (Bar): 100
- Inlet Pressure Max Cont (Bar): 140
- Torque Max Cont (Nm): 323
- Weight (kg): 6.7
- Case: 7/16″ UNF
Shaft Sizes avaliable:
- 1″ Straight Woodruff Keyed (Standard)
- 1″ SAE 6B splined
- 7/8″ 13Y Splined
- 1″ Straight Cross Hole (8mm hole)
- 1″ 1:8 Tapered
