ATA DAVE Commercial Door Operator

ATA DAVE Commercial Door Operator

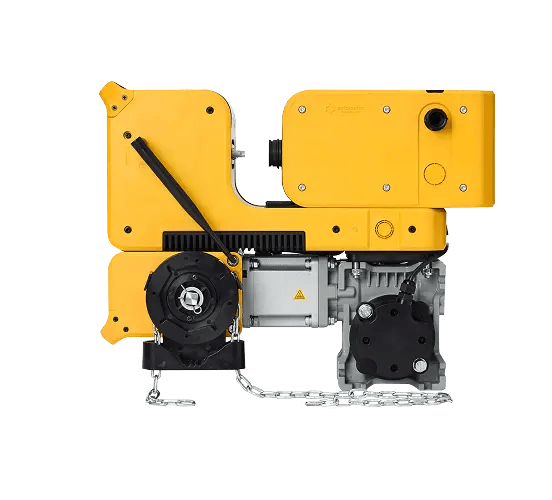

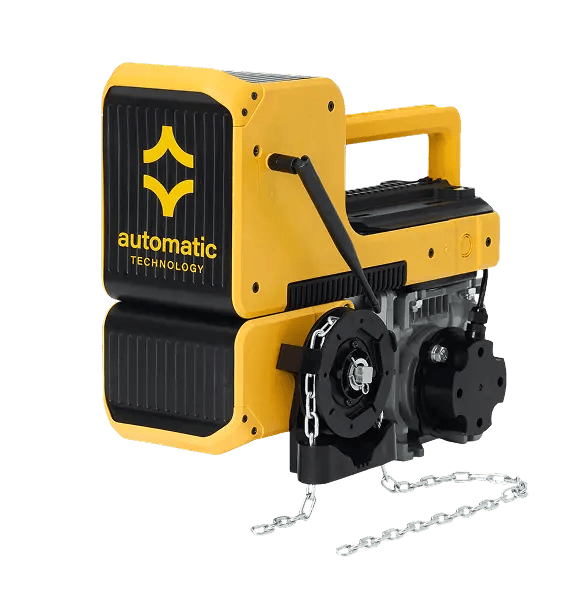

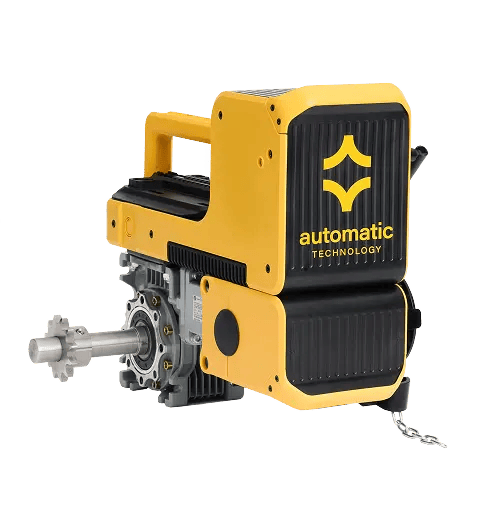

Dave® Commercial Door Operator

Dave is a first for commercial door operators. With uncompromised lifting ability and a world first Omnivolt® swappable power cartridge (patent pending), Dave’s your answer for almost any commercial application.

Dave features a wireless-first wall console, PE Beams and supports single and three phase power from 120-480V around the world.

Instant torque on demand means Dave can handle virtually any door or conditions. And unlike others, Dave never stops learning. Dave’s in-built machine learning technology is constantly profiling your garage door and adjusting things to keep your doors opening smoothly and seamlessly, all day, every day.

All in one small, lightweight package for fast, easy, single person install. No more repeat site visits or hassles of wiring in. Delivering bang for buck straight out of the box.

Features

Lifts up to 1000kg
Swappable Power Cartridge
12kg Lightweight motor
Wireless first accessories
Left or right handed installation
60% duty cycle
IP42 Rating
Suits Series 2 type Roller door or equivalent, Steel Roller Shutter, Standard vertical/ Horizontal Sectional Door, High Lift (Follow the ceiling) Sectional Door, Vertical Lift Sectional Door

Kit Contains

Dave Drive unit
Wireless Wall Console
Hauling Chain
10B Drive Chain & Joiner
Adaptor flange
Shaft, key7 & circlip
Mounting Spacer
10B 12-Tooth Drive Sprocket
Mounting Hardware
Omnivolt™ Power Cartridge

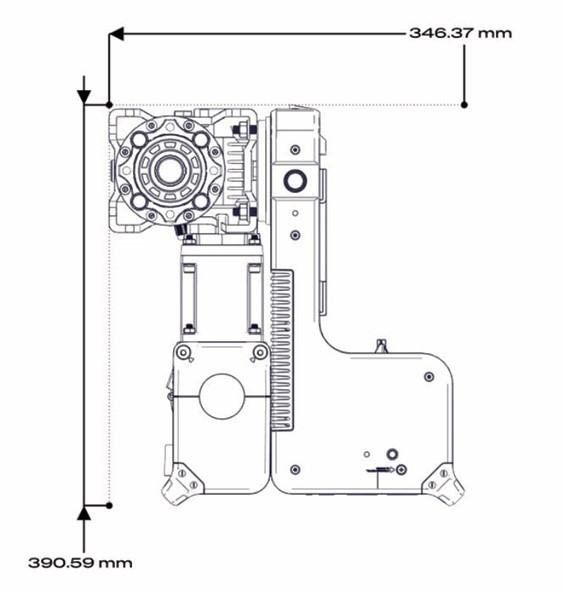

Dave Technical Specifications

Feature	Specification
Motor Type	PMSM
Reducer Ratio	50 to 1
Rated Output Torque	32Nm (23.5ft.lb)
Maximum Door Weight	Up to 1000kg balanced*
Maximum Rated Load (N)	450N
Operating Temperature	-20°C to 65°C
Environment	Indoor use only
Output Drive Shaft Diameter	25.4mm
Output Drive Shaft Length	95mm
Standard Operator Sprocket	12 teeth 10B
Optional Sprocket	10 teeth 12B
Drive Unit Weight	11.4kg (with shaft and sprocket)
Reducer Output Speed	60RPM (at 3000RPM motor speed)
Maximum Duty Cycle	60%**
On Board Receiver Memory	64
IP Rating	IP42**

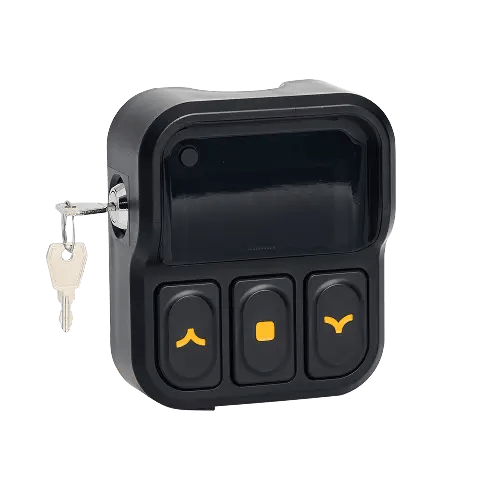

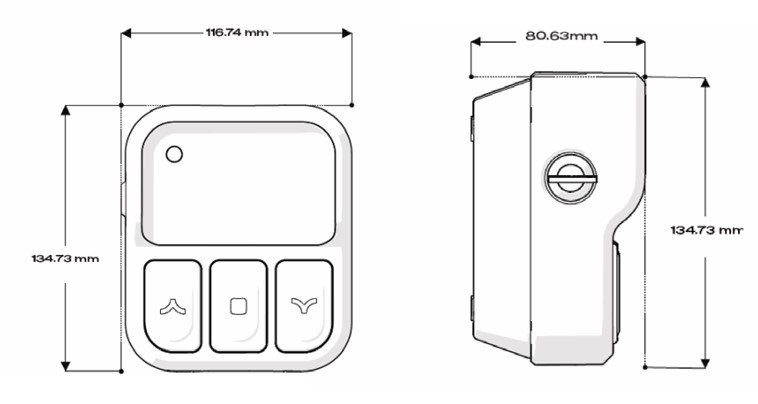

Wireless Wall Control Specifications

Feature	Specification
Control Button Range	20 metres†
Configuration / Set-up Range	15 metres† (via Bluetooth)
Menu Display	LCD 4 lines x 20 characters
LCD Back-lighting	Yes
Power Options	2 x D size 1.5V batteries (5 year battery life ‡)
	5VDC power adaptor
	Direct wiring to the operator

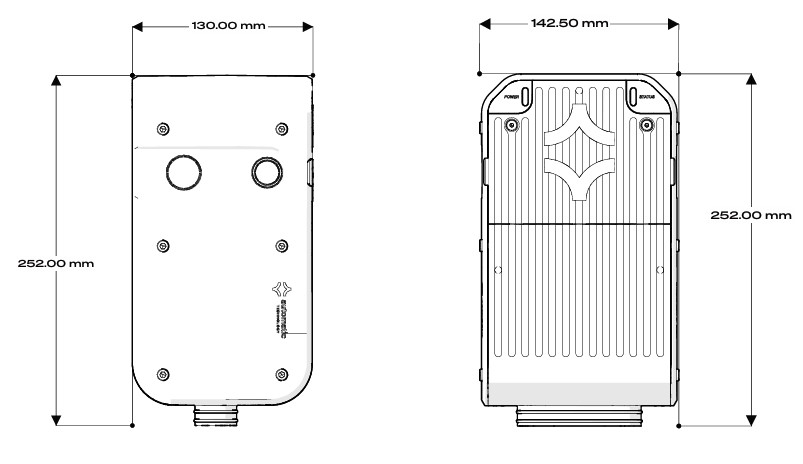

OmniVolt™ Power Cartridge

Feature	Specification
Mains power supply	Low voltage
Input Power	1000W
Input Voltage Fuse	230-240Vac 50/60Hz
Power cartridge weight (with power cord)	1.6kg
Max current consumption	5A @ 240V
Operating temperatures	-20°C to 65°C
