$495.00

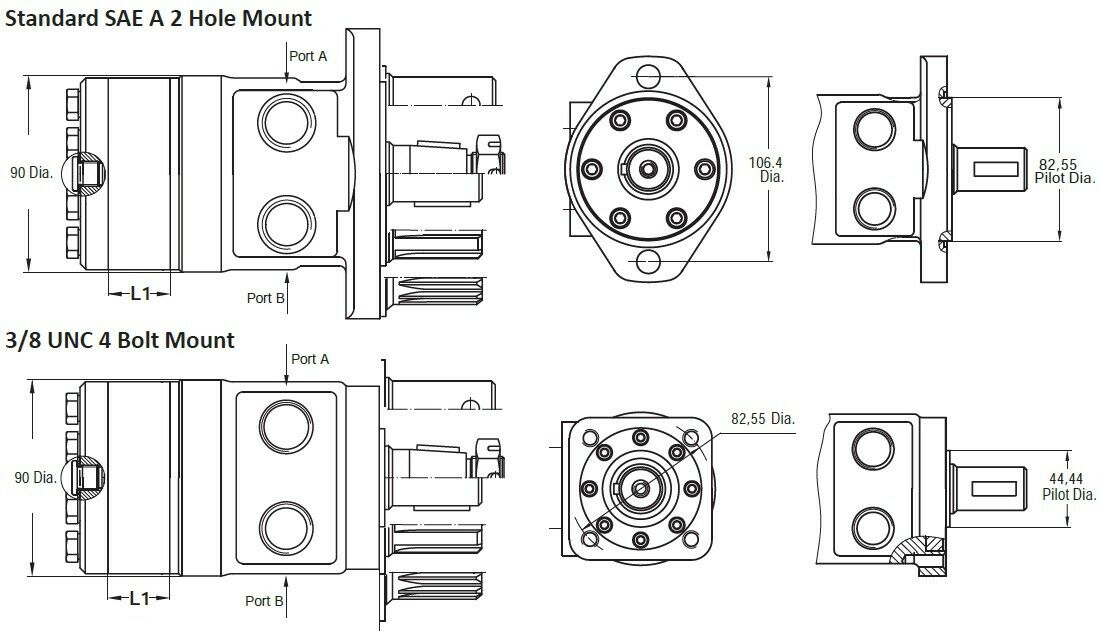

Orbital Hydraulic Motor SDH200 Interchangeable with Parker TB
Specifications:
- CC/Rev: 198
- Rotor Width L1 (mm): 26.67
- Speed Max Cont (RPM): 303
- Flow Max Cont (LPM): 60
- Pressure Drop Max Cont (Bar): 105
- Inlet Pressure Max Cont (Bar): 140
- Torque Max Cont (Nm): 271
- Weight (kg); 6.5
- Case: 7/16″ UNF
Shaft Sizes avaliable:
- 1″ Straight Woodruff Keyed (Standard)
- 1″ SAE 6B splined
- 7/8″ 13Y Splined
- 1″ Straight Cross Hole (8mm hole)
- 1″ 1:8 Tapered
