Dispatch in 24 hours Pick-Up Available Return:30-day buyer pays return postage
$485.00
Orbital Hydraulic Motor SDH160 Interchangeable with Eaton H Series, Danfoss DH
Specifications:
- CC/Rev: 158.4
- Rotor Width L1 (mm): 21.33
- Speed Max Cont (RPM): 379
- Flow Max Cont (LPM): 60
- Pressure Drop Max Cont (Bar): 115
- Inlet Pressure Max Cont (Bar): 140
- Torque Max Count (Nm): 238
- Weight (kg): 6.3
- Case: 7/16″ UNF

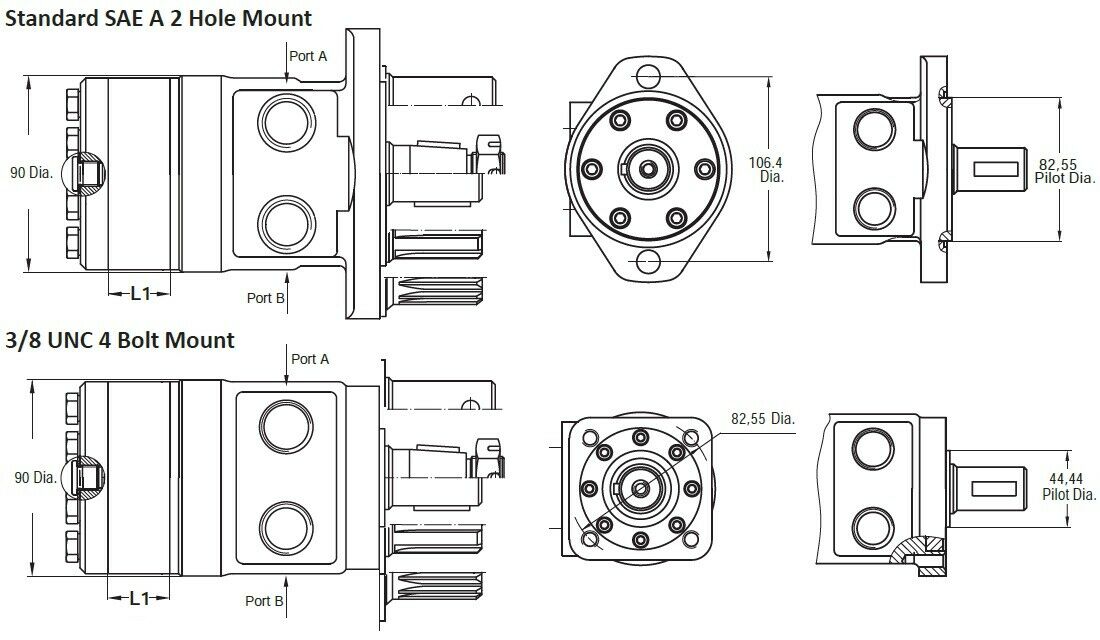

Shaft sizes available:
- 1″ Straight Woodruff keyed (Standard)
- 1″ SAE 6B Splined
- 7/8″ 13T Splined
- 1″ Straight Cross Hole (8mm hole)
- 1″ 1:8 Tapered
