$2,690.00

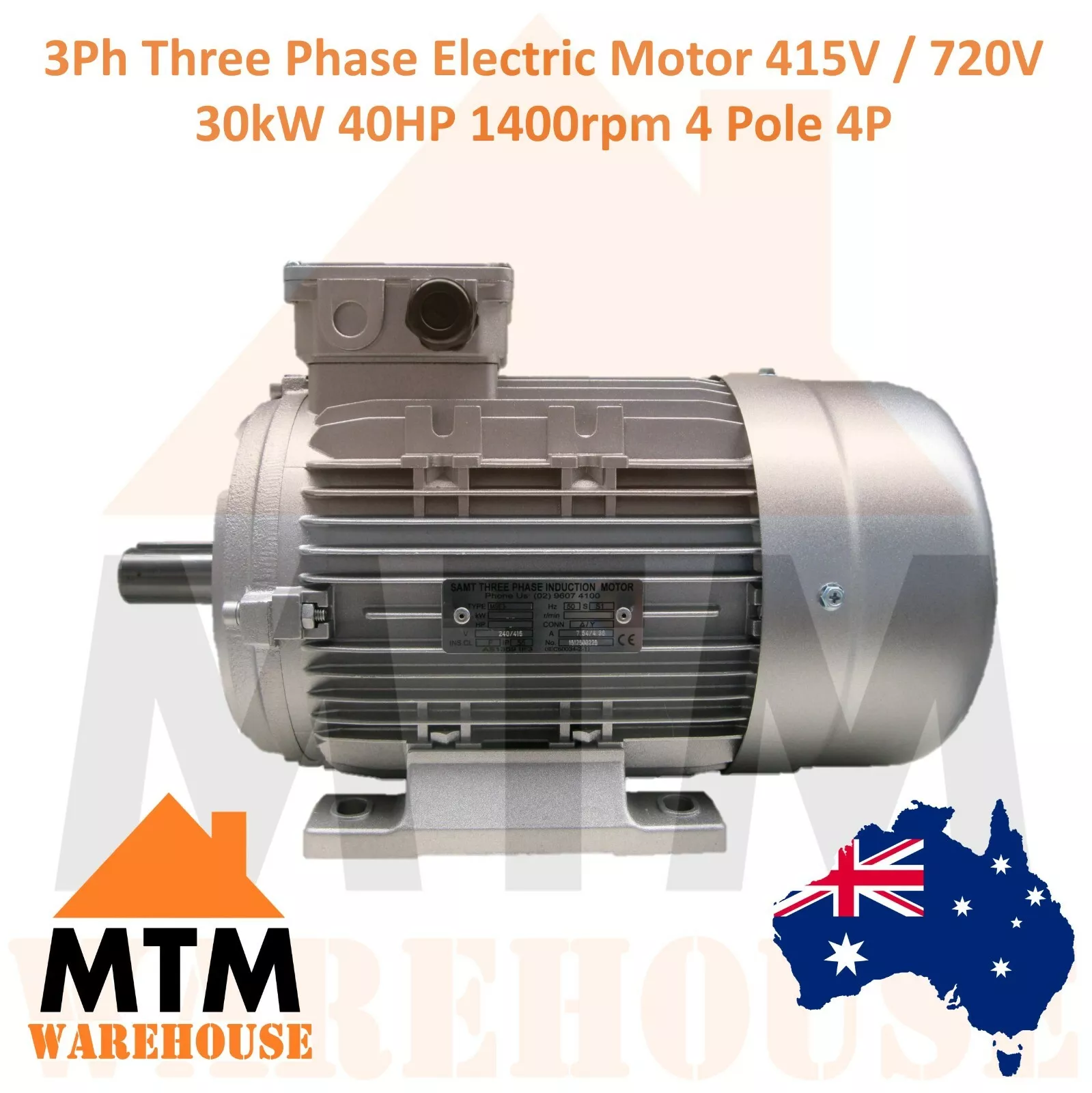

3Ph Three Phase Electric Motor 415V / 720V 30kW 40HP 1400rpm 4 Pole 4P
3Ph Three Phase Electric Motor 415V / 720V 30kW 40HP 1400rpm 4 Pole 4P
3Ph Three Phase Electric Motor 415V / 720V 30kW 40HP 1400rpm 4 Pole 4P
SAA Approved
Specifications:
- Power: 30Kw (40HP)
- Voltage: 415V / 720V Three Phase 50Hz
- Speed: 4 Pole (1400rpm)
- Shaft size: 55mm
Features:
- IEC Standard
- Customised Silver Paint
- IP55 Protection Rating
- Epoxy Painted
- Cast Iron construction with top mounted terminal box
- Class F insulation
- IE3 High Efficiency
- Totally Enclosed Fan Cooled
- High quality bearings, grease packed for life
- Low noise and vibration
Suitable Applications:
- Hoists / Winches
- Compressors
- Conveyor Drives
- Pump Drives
- Automation Devices
- Food / Pharmacy Packaging
- Pulley drives
- Fans
- Food Processing
Optional Accessories (Available on request):
- IEC Flange/Foot Mounting
- Slide Rails
- Industrial Gearboxes
- Couplings
- Pulleys
- Chain Drives

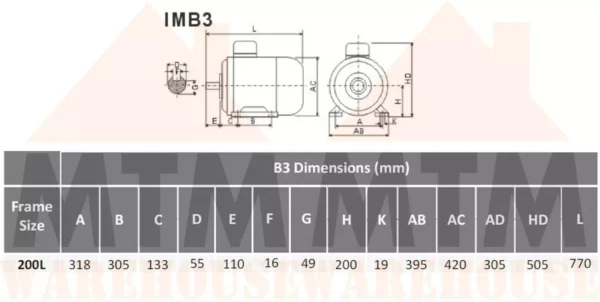

Dimensions: (This listing is for IMB3 motor, we can provide IMB14 and IMB5 for extra charge)
